Hybrid Inverter System

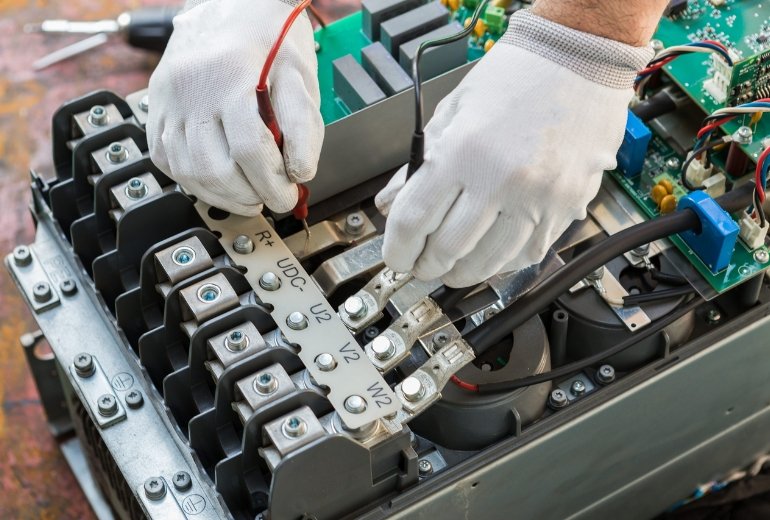

Avani hybrid inverter installation in industrial facility

Hybrid Inverter Systems

Avani Sales & Service' hybrid inverters combine grid power, solar energy, and battery storage to deliver uninterrupted, efficient power solutions for industrial and commercial applications. Our intelligent systems automatically optimize energy usage, prioritizing solar power when available and seamlessly switching between power sources to maximize efficiency and minimize electricity costs.

Engineered for India's challenging power conditions, our hybrid inverters feature robust construction with input voltage ranges from 90V to 300V (single-phase) and 300V to 480V (three-phase), delivering pure sine wave output with voltage regulation within ±1%. Available from 5kVA to 200kVA, they support diverse applications from small businesses to large manufacturing plants.

  • Triple power source integration
  • Input range: 90V-300V (1-phase)
  • 300V-480V (3-phase)
  • 5kVA to 200kVA capacity
  • Efficiency up to 97%
  • IP55 protection standard

Intelligent Power Management

Avani's hybrid inverters incorporate advanced microprocessor control with multiple operation modes to optimize energy usage:

  • Solar priority mode maximizes renewable energy usage
  • Grid-tie with battery backup for uninterrupted power
  • Automatic generator start during extended outages
  • Smart load management for critical circuits
  • Time-of-use optimization for tariff management

Avani Hybrid Inverter Advantages

Our hybrid inverters are built with industrial-grade components rated for 50°C operation. The modular design allows for easy capacity expansion, while the military-grade construction ensures reliable performance. All systems include remote monitoring capabilities and come with a 5-year warranty.

Technical Specifications

Technology IGBT-based with MPPT solar charging
Waveform Pure sine wave (THD < 3%)
Solar Input 120-450VDC, 5000W max per MPPT
Battery Voltage 48V/96V/120V options available
Communication WiFi/4G with cloud monitoring
Standards IS 16242, IEC 62109, CE Certified
